AUTEL ULTRA LITE 2 YEAR

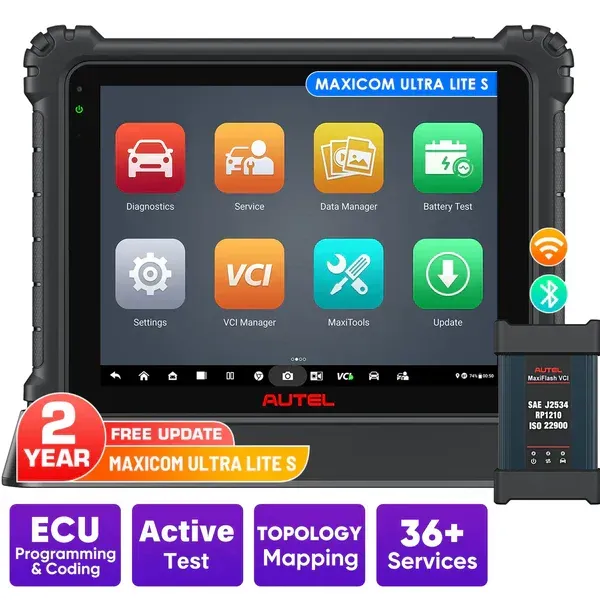

Autel MaxiCOM Ultra Lite 2 year version
Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
| Operating System | Android 7.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 256GB On-board Memory |
| Display | 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
| Connectivity | WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) |
| BT v.2.1 EDR | |
| GPS | |
| USB 2.0 (Two USB HOST Type A, one USB mini device) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 5 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | 18000mAh 3.8V lithium-polymer battery |
| Charging via 12V AC/Dcpower supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
| Weight | 2.18kg (4.81 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
